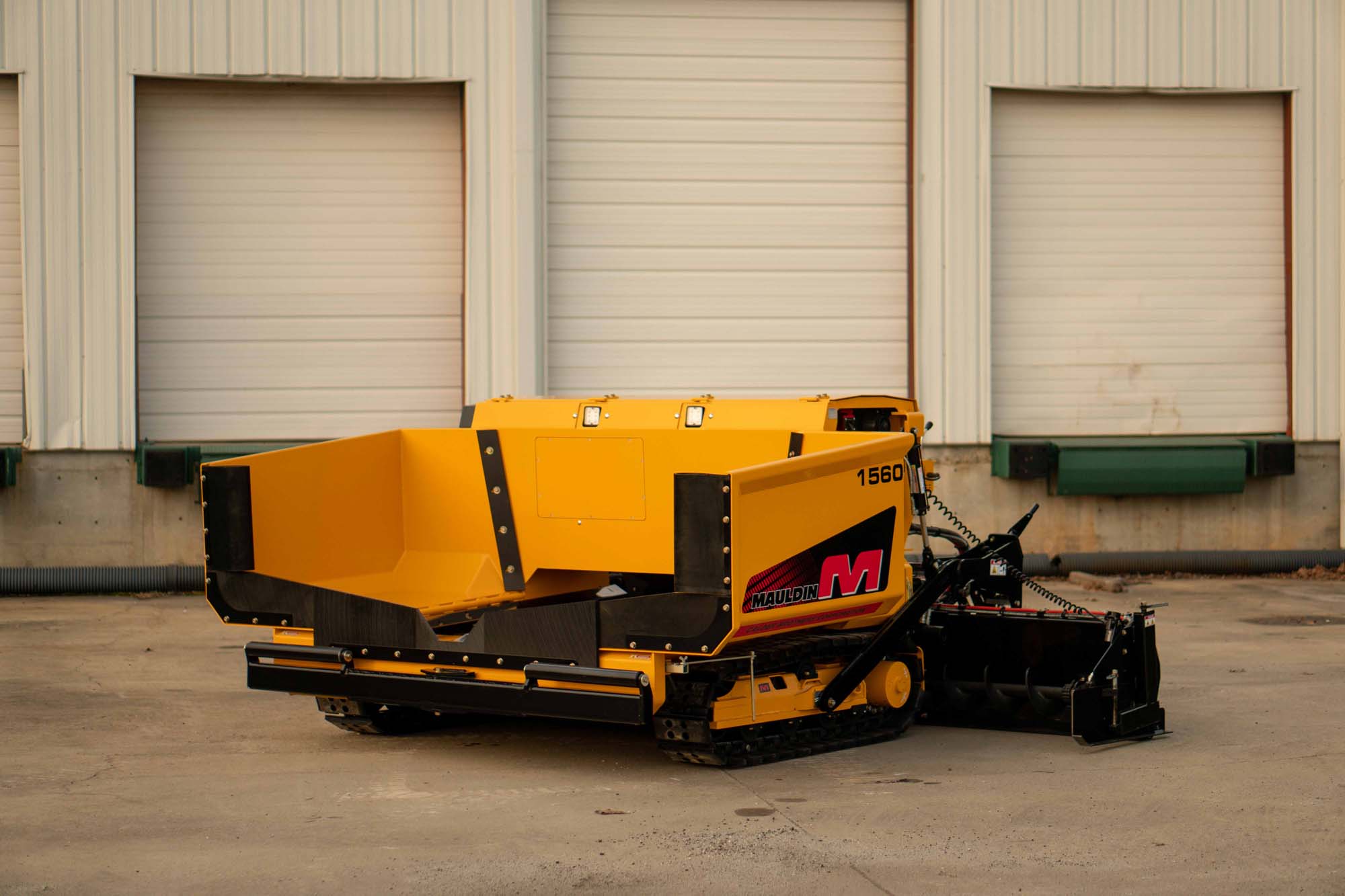

1560

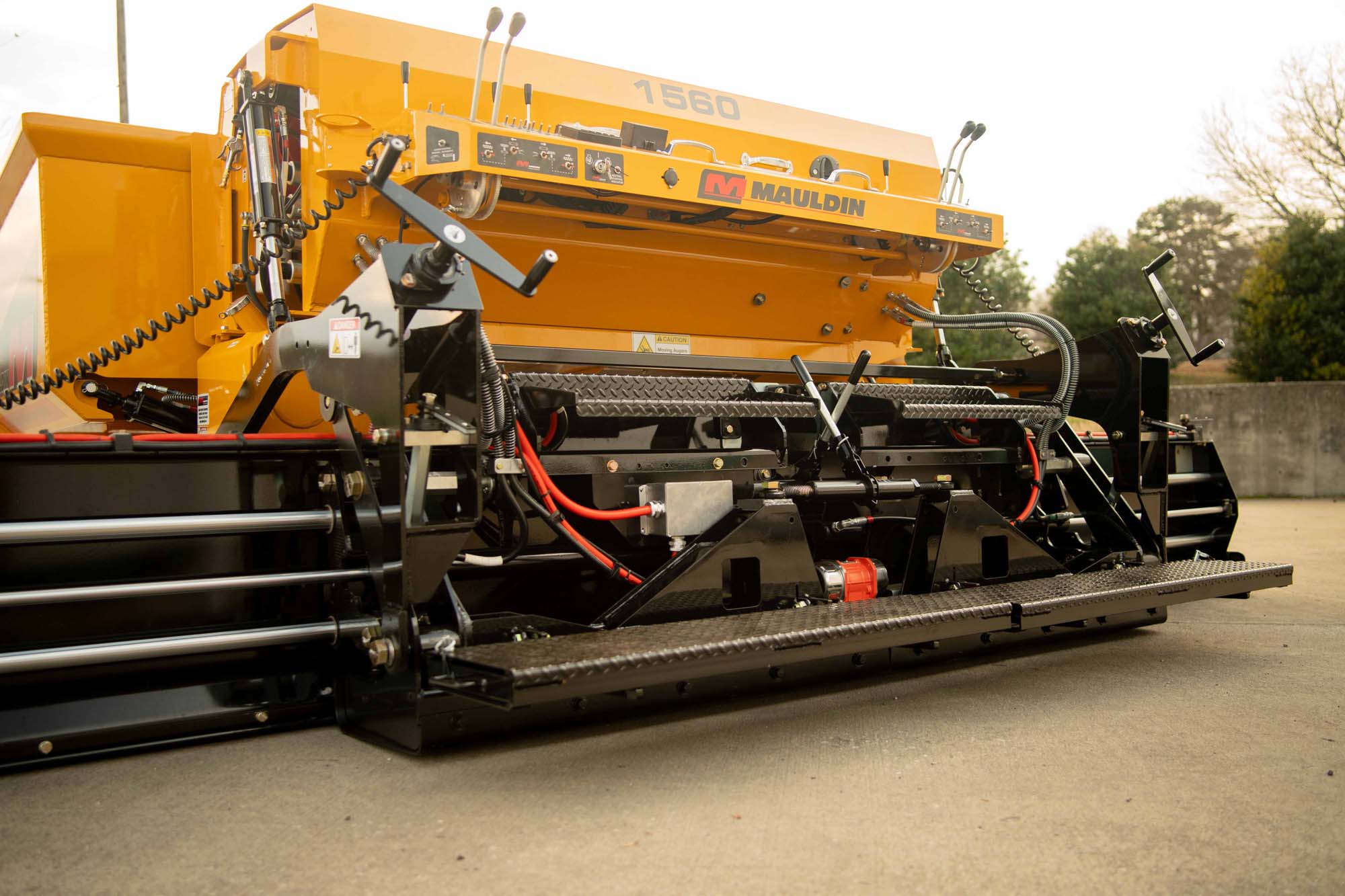

  • FREEDOM-FOUR Screed™ with Patented Extension Matching System

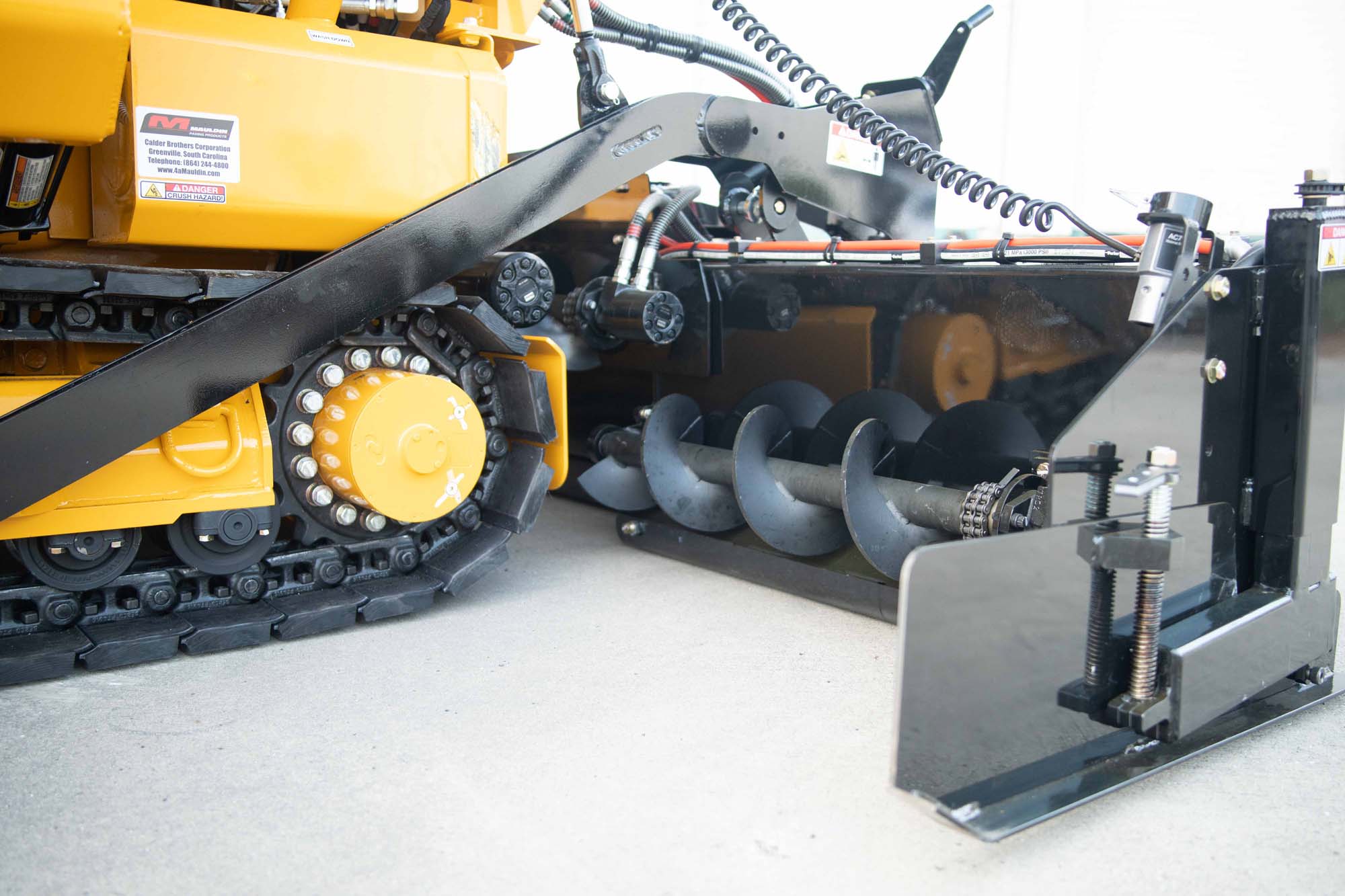

  • Four Auger Material Feed System with Extending Extension Augers Feeds to 14’ with Ease
  • Thermostatically Controlled Electric Heated Screed
  • 14 KW Direct Driven Generator for Maximum Efficiency
  • Fully Enclosed Engine with No Muffler Exhaust System
  • 74 HP Tier IV Final Turbocharged Diesel Engine
  • Two-Speed Polyurethane Crawler Track Drive System
  • Night Operating Light Kit
DOCUMENTATION
Dimensions

Length: 11 ft 4 in (345 cm)
Width: 8 ft 6 in (259 cm)
Height: 5 ft 4 in (162 cm)
Weight: 12,500 lb (5,580 kg)
Screed Weight: 3200 lb (1452 kg)
Truck Clearance: 23 in (58 cm)
Track Pad Width: 12 in (30 cm)
Track Length: 72 in (180 cm)

Capacities

Hopper Capacity: 6.5 Tons (5,900 kg)
Fuel Tank: 13 Gal (48 L)
Hydraulic Tank: 15.5 Gal (58 L)
Washdown Tank: 13 Gal (48 L)

Paving

Paving Widths: 8 to 14 ft (2.4 to 4.3 m)
Paving Depth: 0-6 in (0-15 cm)
Heating Source: 14KW Direct Driven Generator
Augers: (2) Fixed Main Screed; (2) Extendable
Paving Speed: 0-140 fpm (0-43 mpm)
Travel Speed: 0-290 fpm (0-89 mpm)

Engine

Manufacturer Cummins
Displacement Liters: 2.8L
Tier 4 Final
74 HP (KW)
