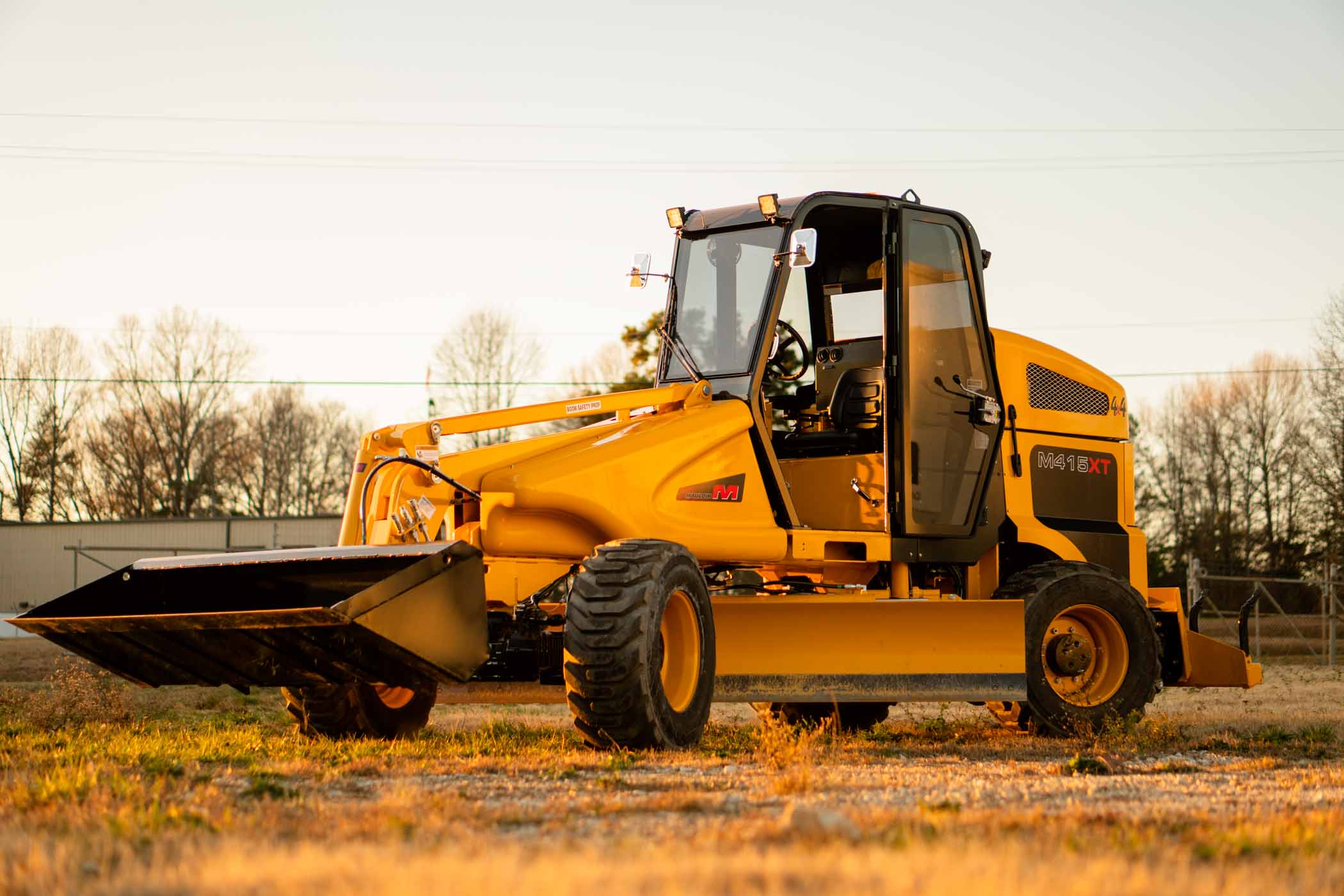

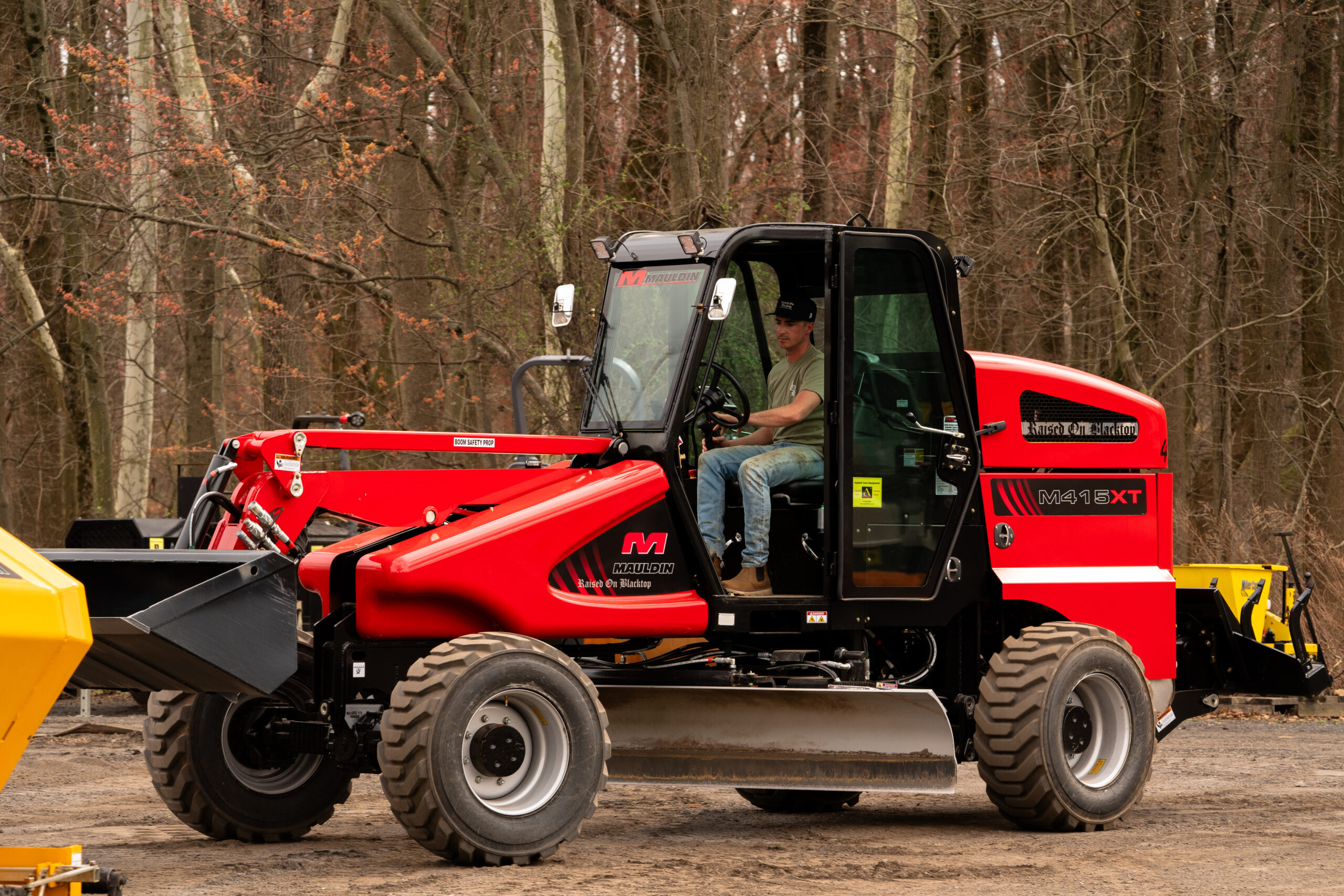

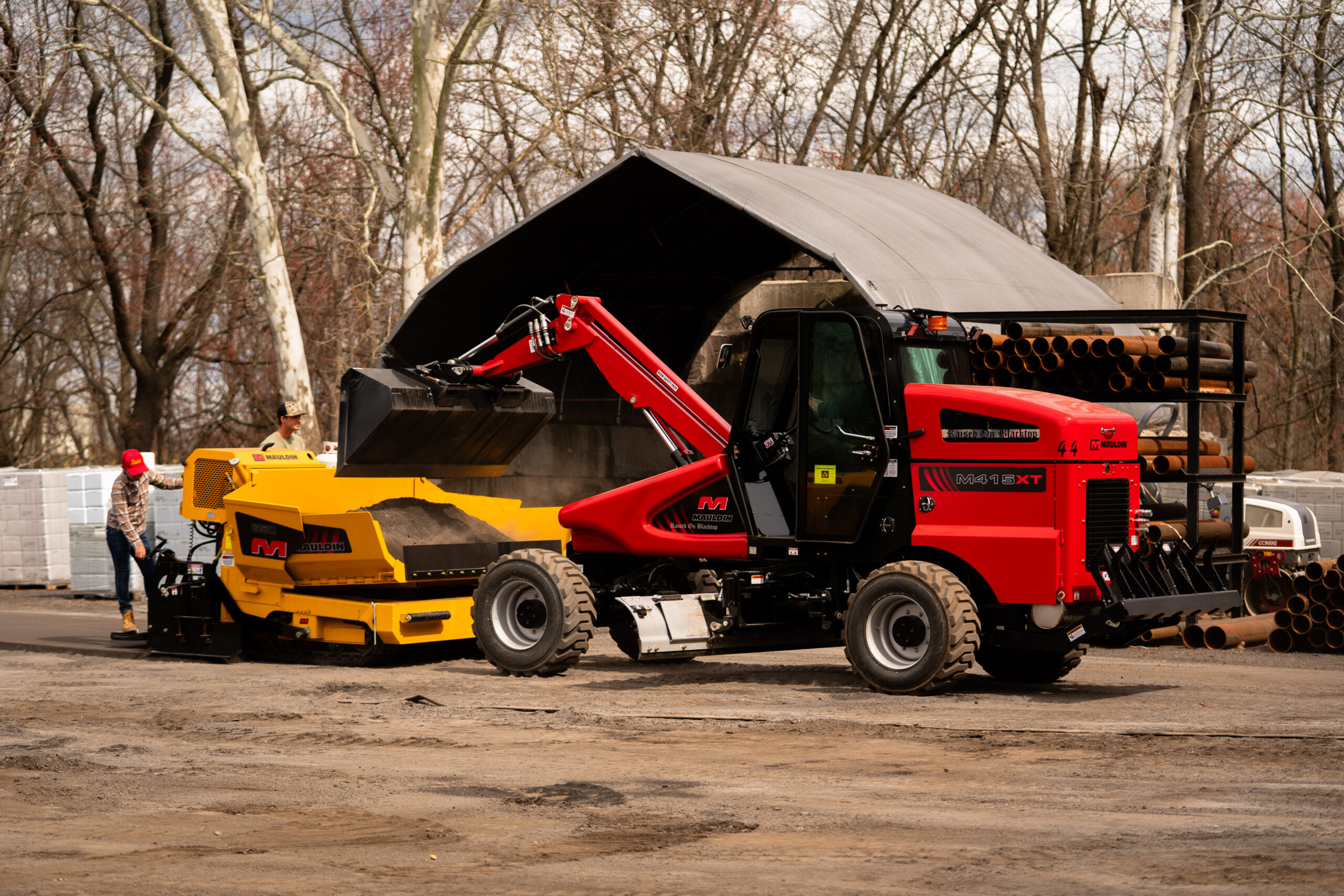

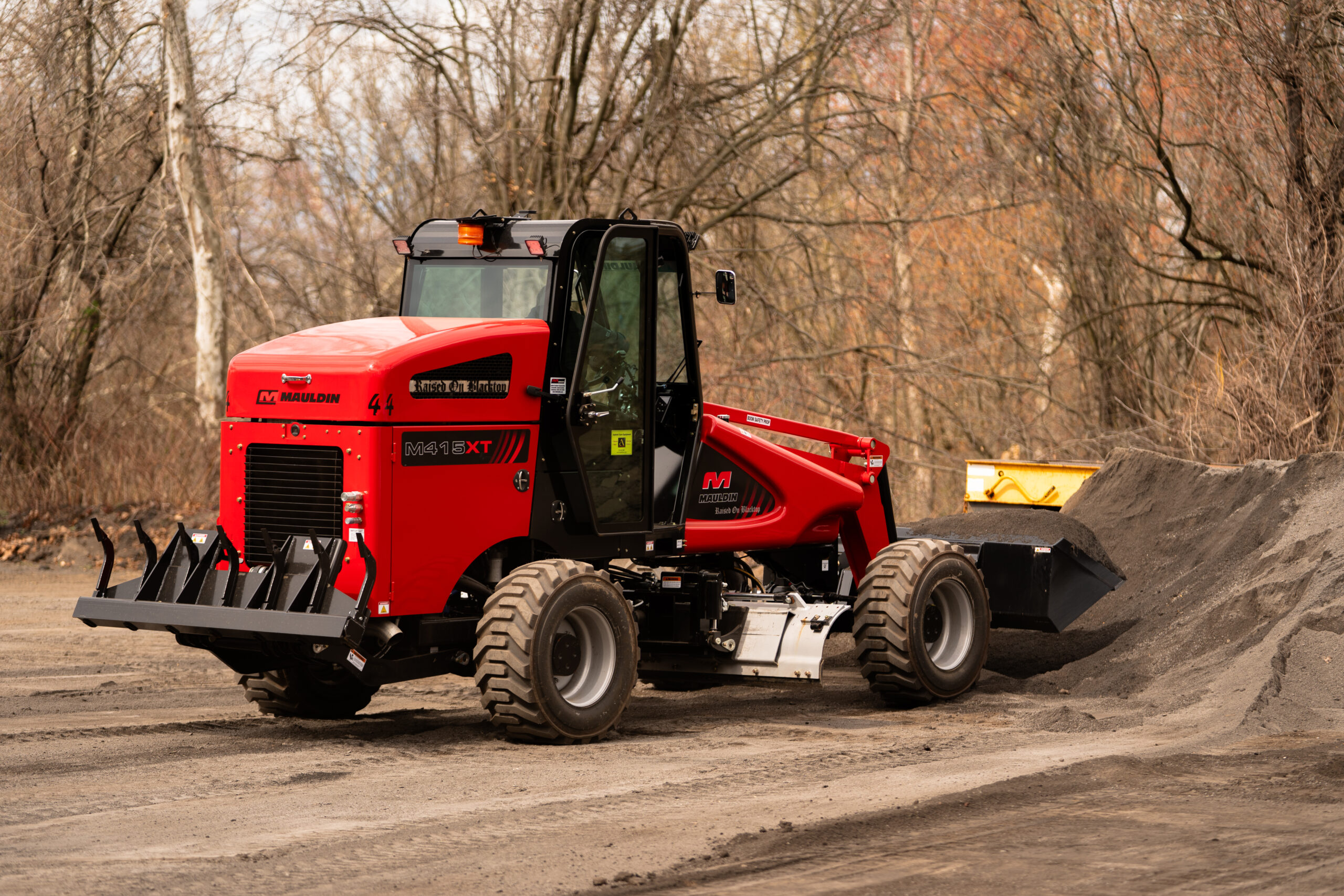

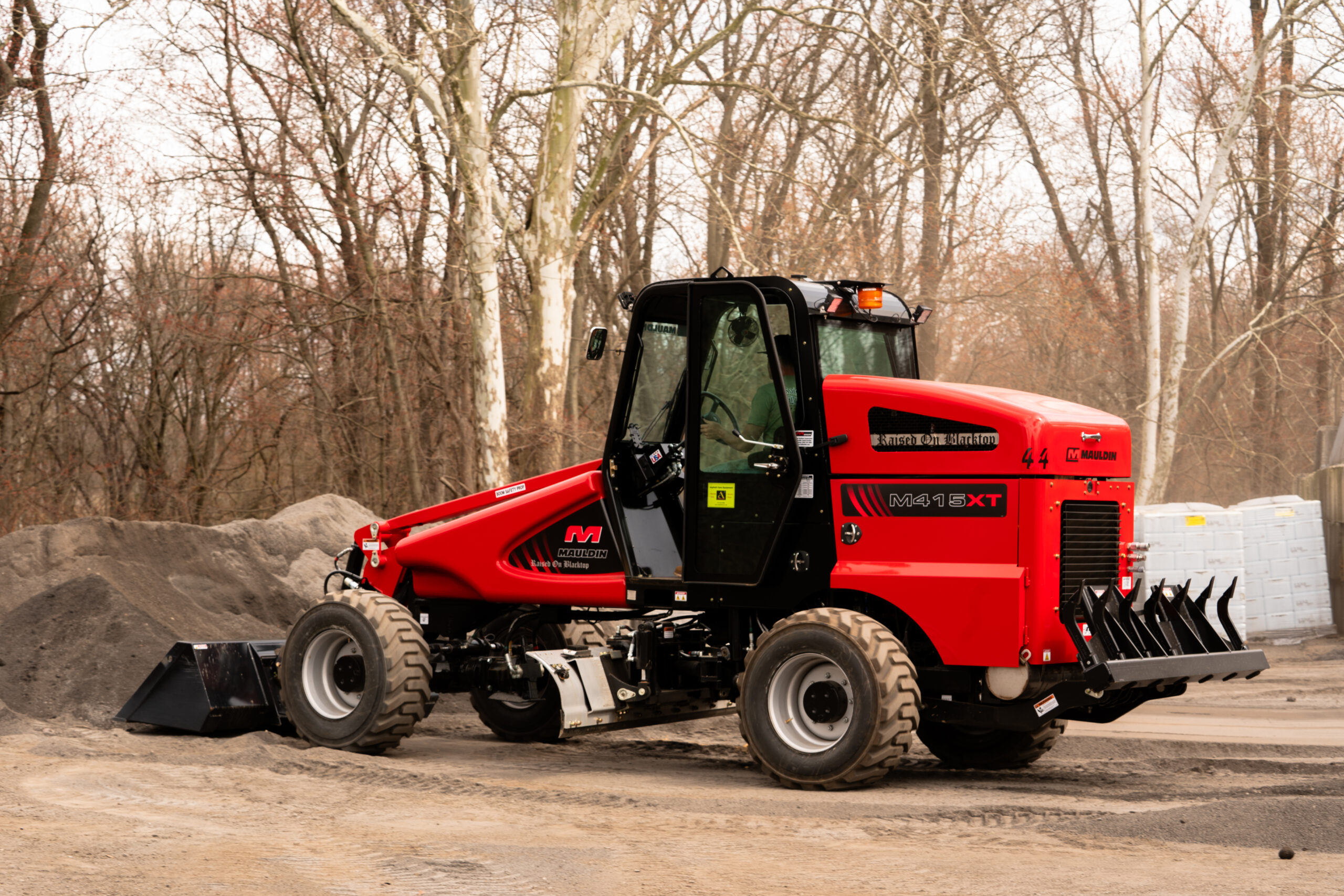

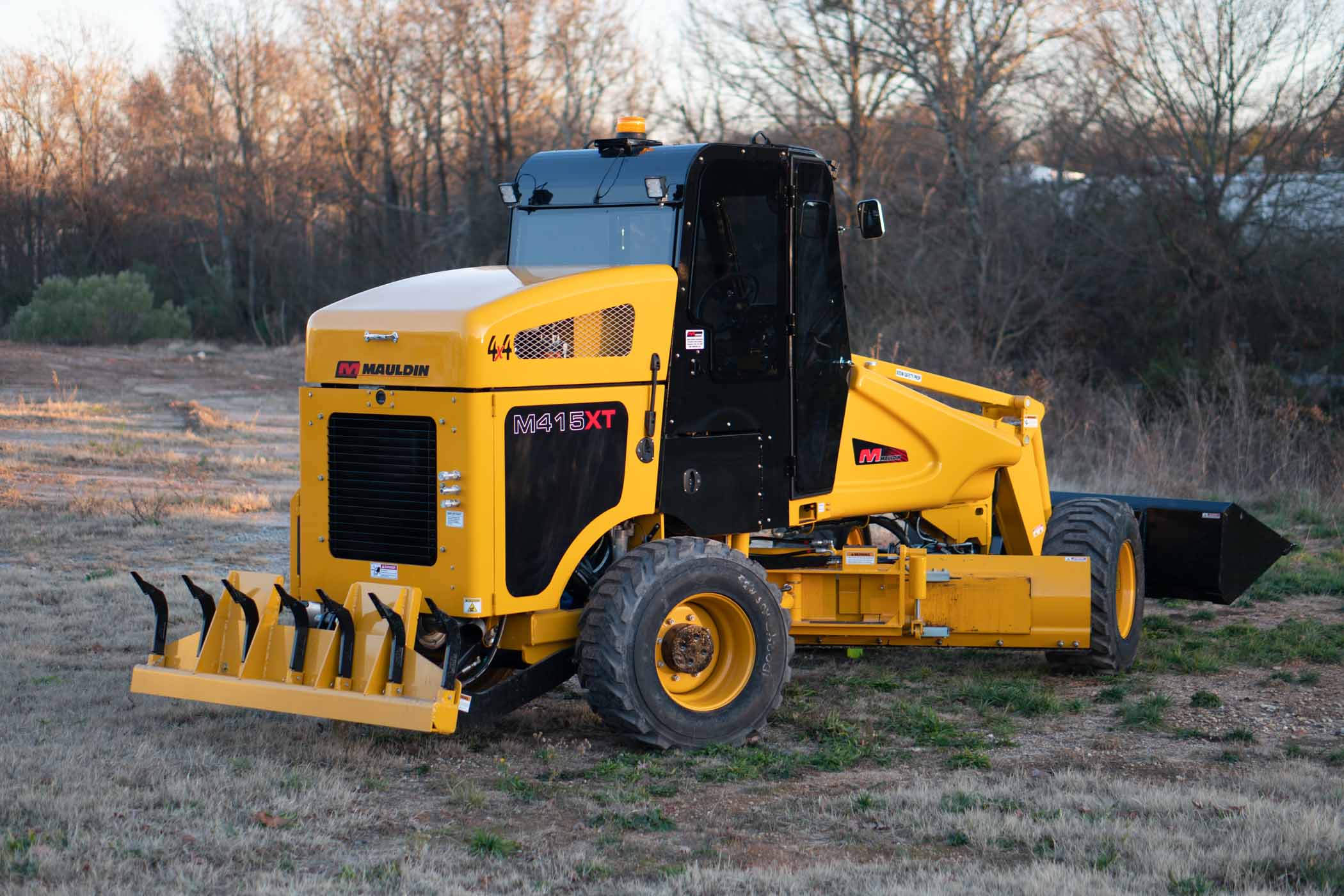

M415XT

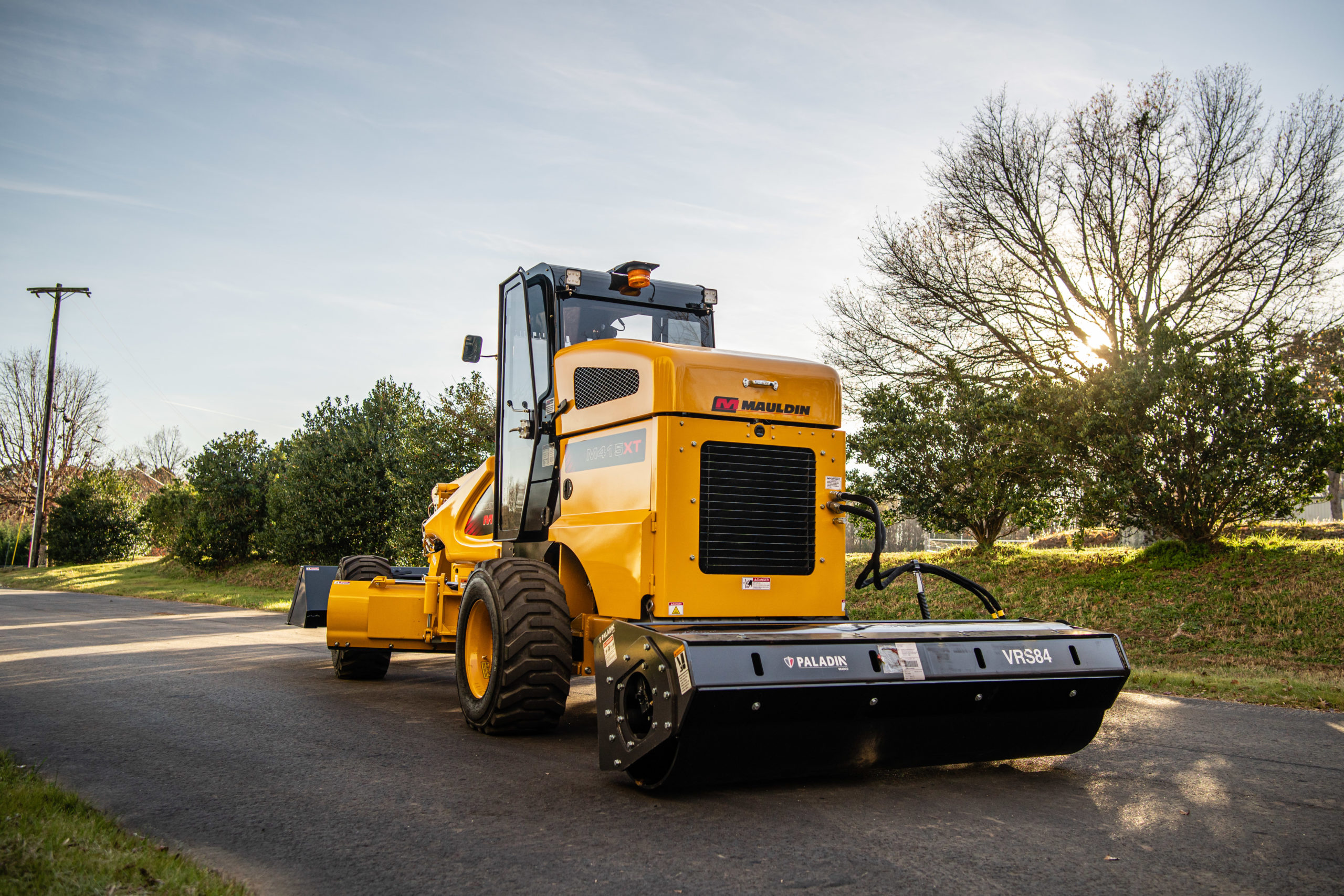

  • 10′ Moldboard, 3/4 yd3 Bucket, 84″ Scarifier
  • Cummins 3.8L Tier 4 Final

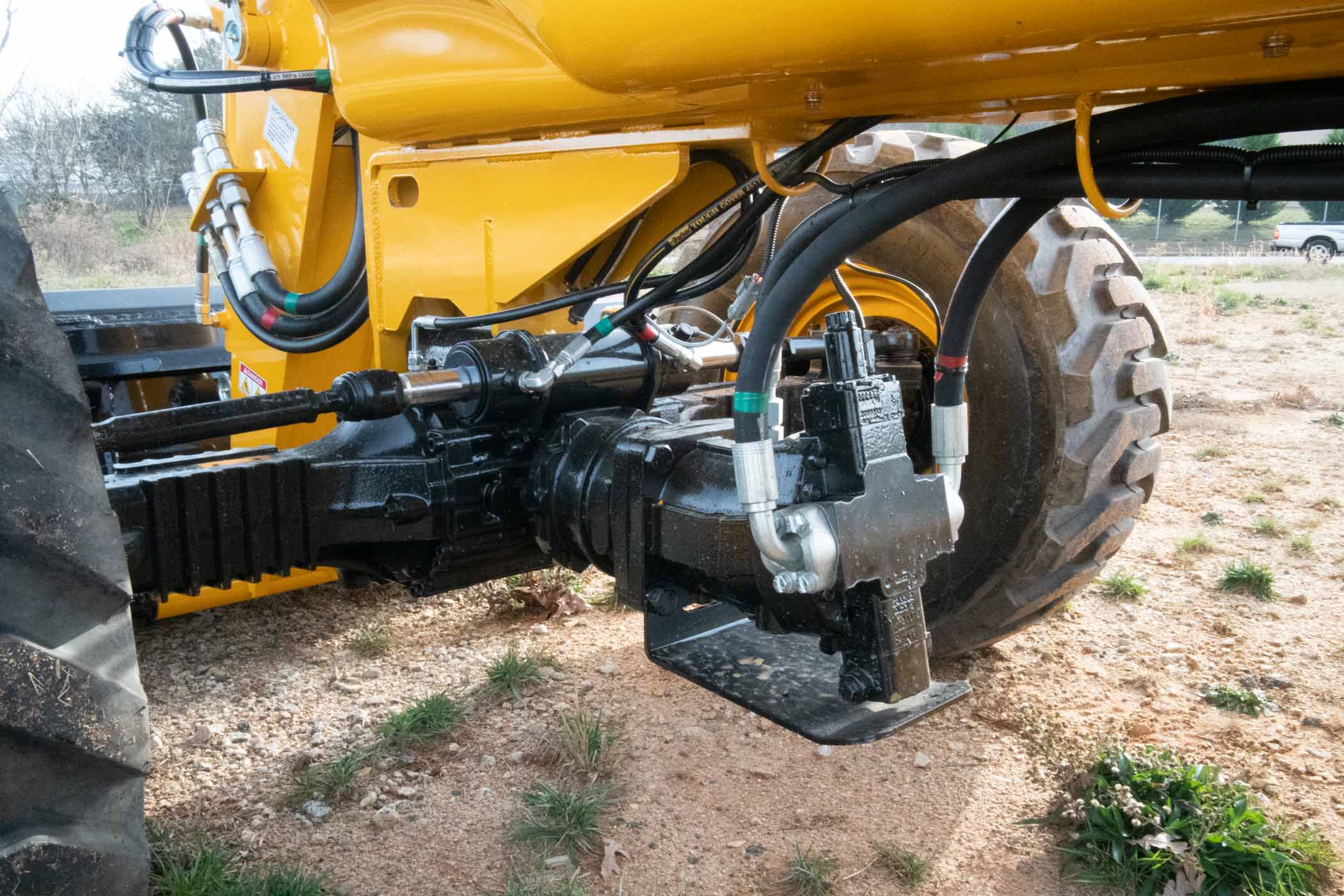

  • All-Wheel Solid Axle
  • 4 Wheel Steering

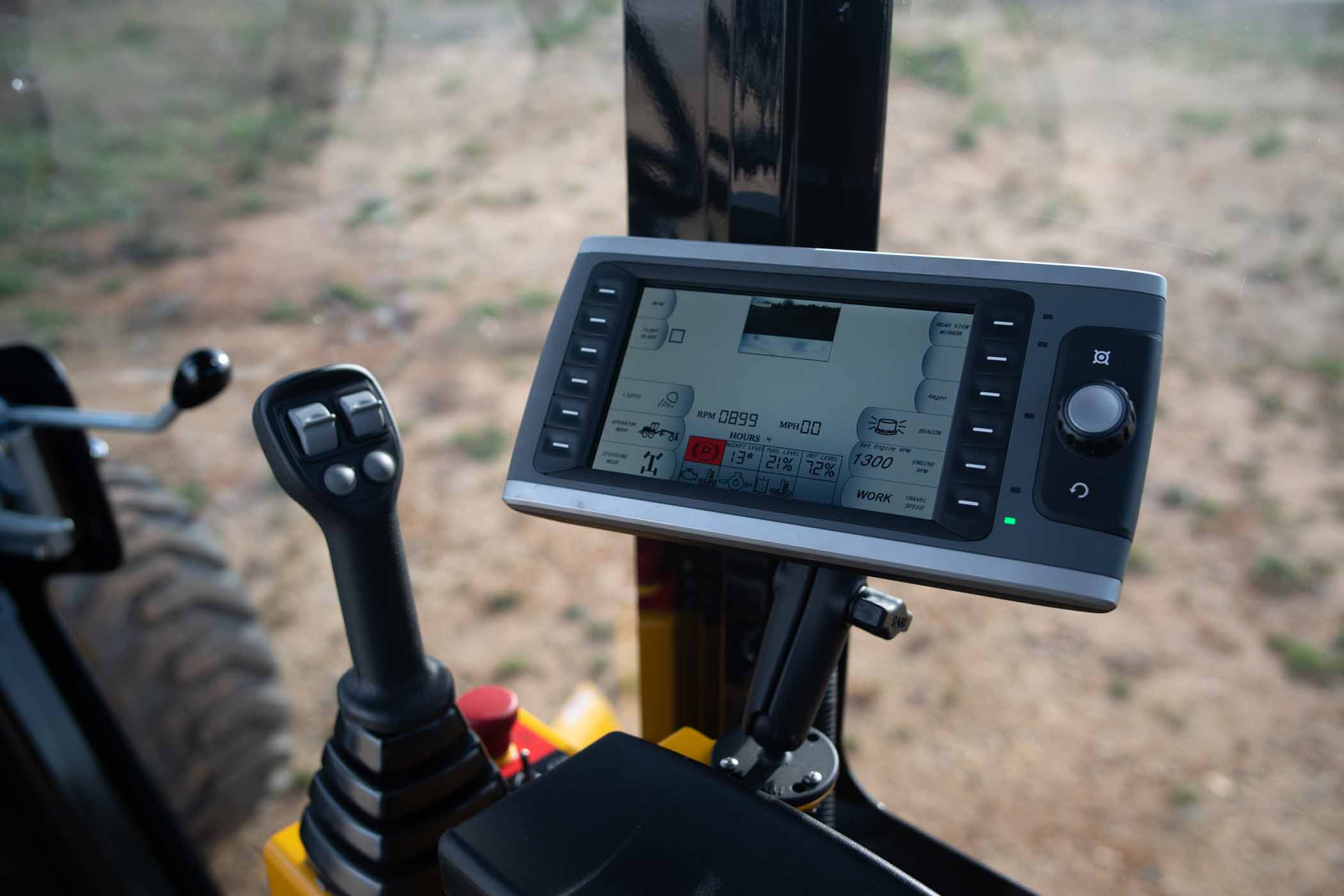

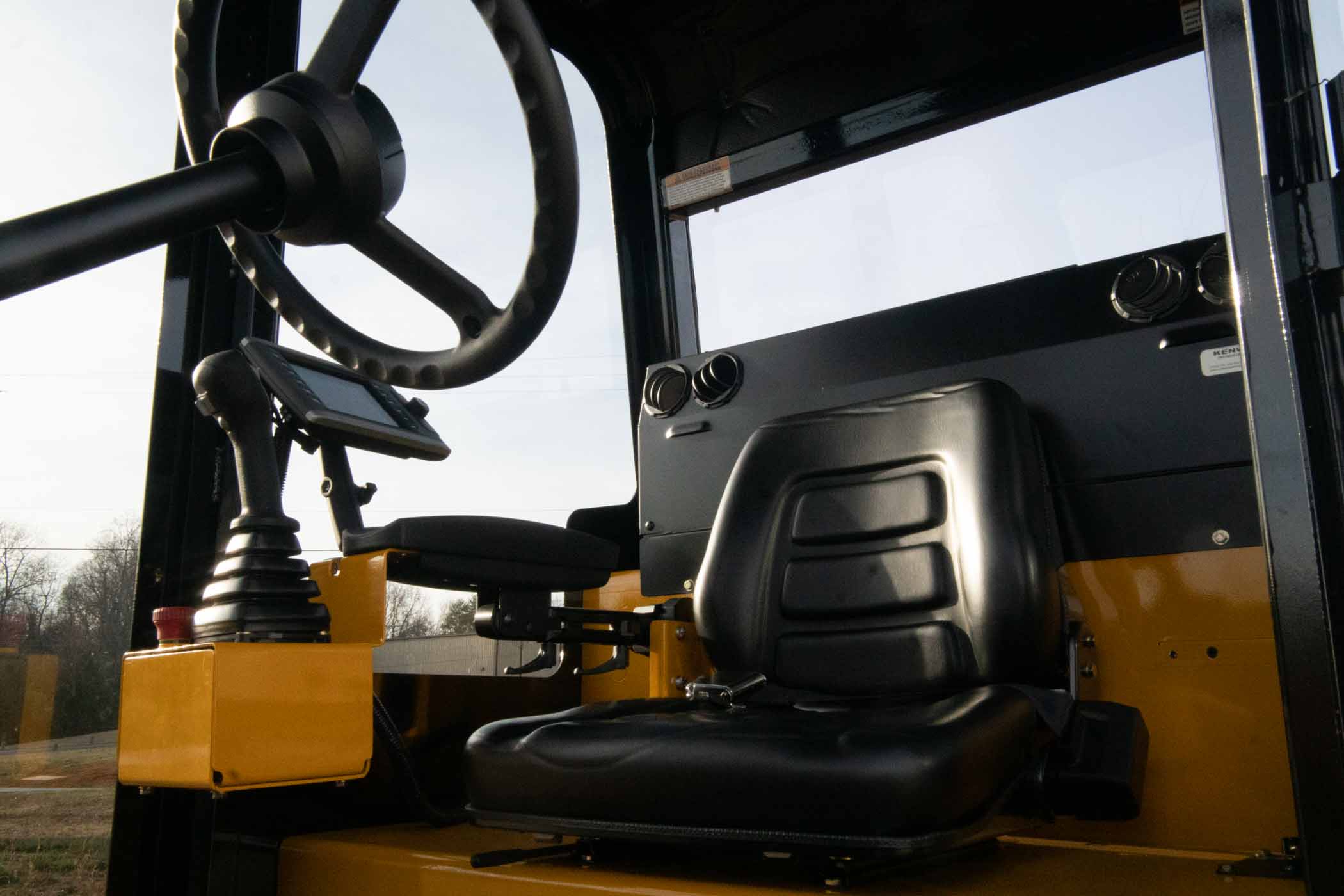

  • Single Joystick Control

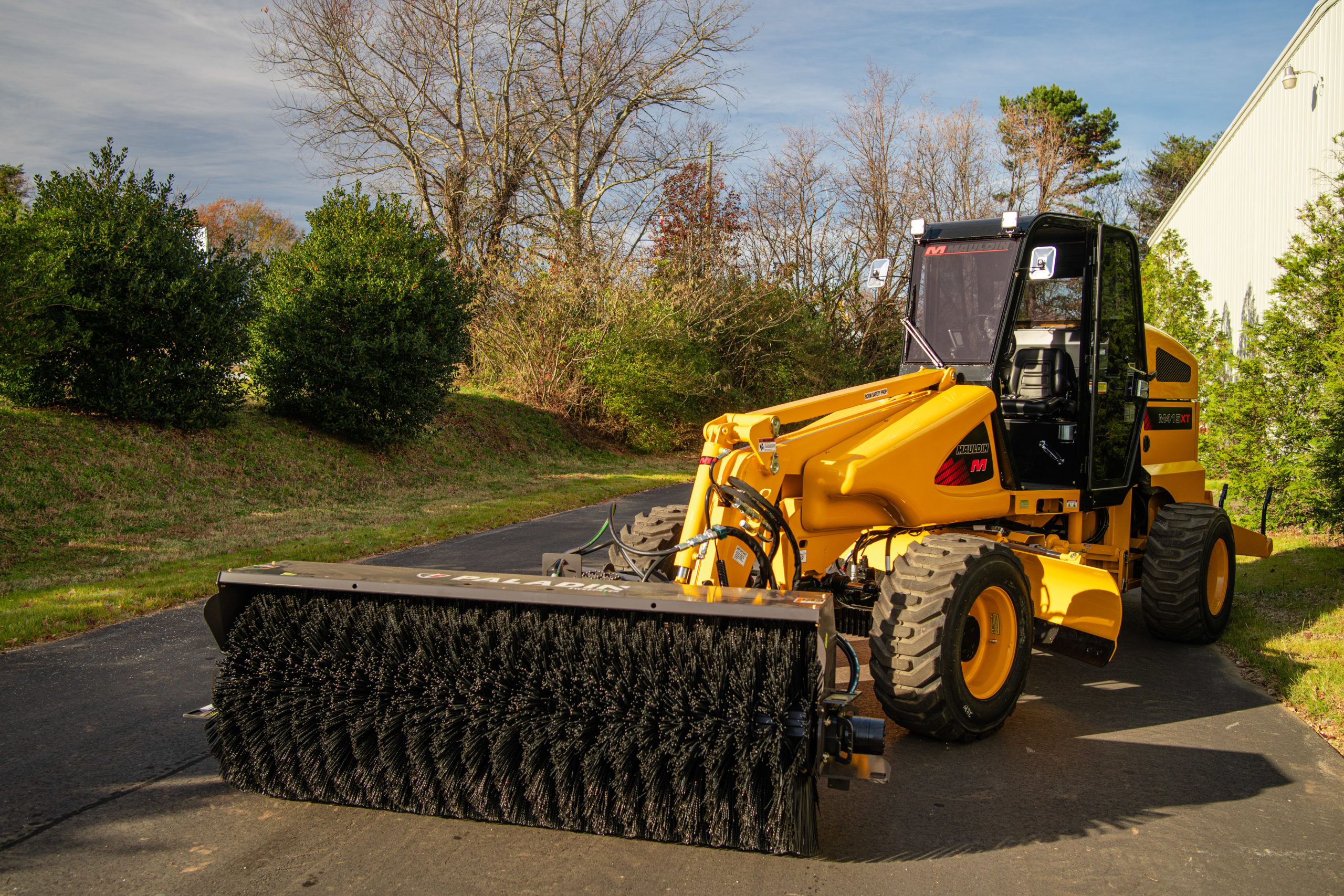

  • Front and Rear Universal Quick-Attach
  • Front and Rear Auxiliary Hi-Flow Hydraulic capability
  • Enclosed Cab with Air Conditioning and Heat
  • 5in Color Gauge and Control Display
  • Moldboard Functions:
    • Power Raise/Lower
    • Angle
    • Sideshift
    • Tilt and Float Positions
  • Limited Edition Option (learn more)
DOCUMENTATION
BID SPEC
Dimensions

Length 21 ft (305 x 48 cm)
Height 8 ft 10.5 in (271 cm)
Width 97 in (246 cm)
Weight 15,000

Performance

Blade Length x height: 10 ft x 19 in

Top Speed
Low Range 0-8 mph (13 kph); High Range 0-17 mph (27 kph )

Turning Radius
8ft (Inside of blade radius)

Engine

Manufacturer: Cummins
Displacement: 3.8L
Horse Power: 130hp
Tier 4 Final

Capacities

Fuel 40 gal (151 L)
Hydraulic 20 gal (76 L)
DEF 5 gal (19 L)
Bucket 3/4 yard
